Coronary Stent

Architect

iVascular | ARCHITECT | Coronary Stent

Specifications

Stent Material: CoCr L605
Recoil: <5%
Shortening upon Expansion: <3%
Nominal Pressure: 11 atm
Rated Burst Pressure (RBP): 16 atm
Radiopaque Markers: 2 Pt/Ir markers
Catheter Compatibility: 5F
Working Length of Catheter: 142 cm
Recommended Guidewire: 0.014 inches
Entry Profile: 0.017 inches

Description

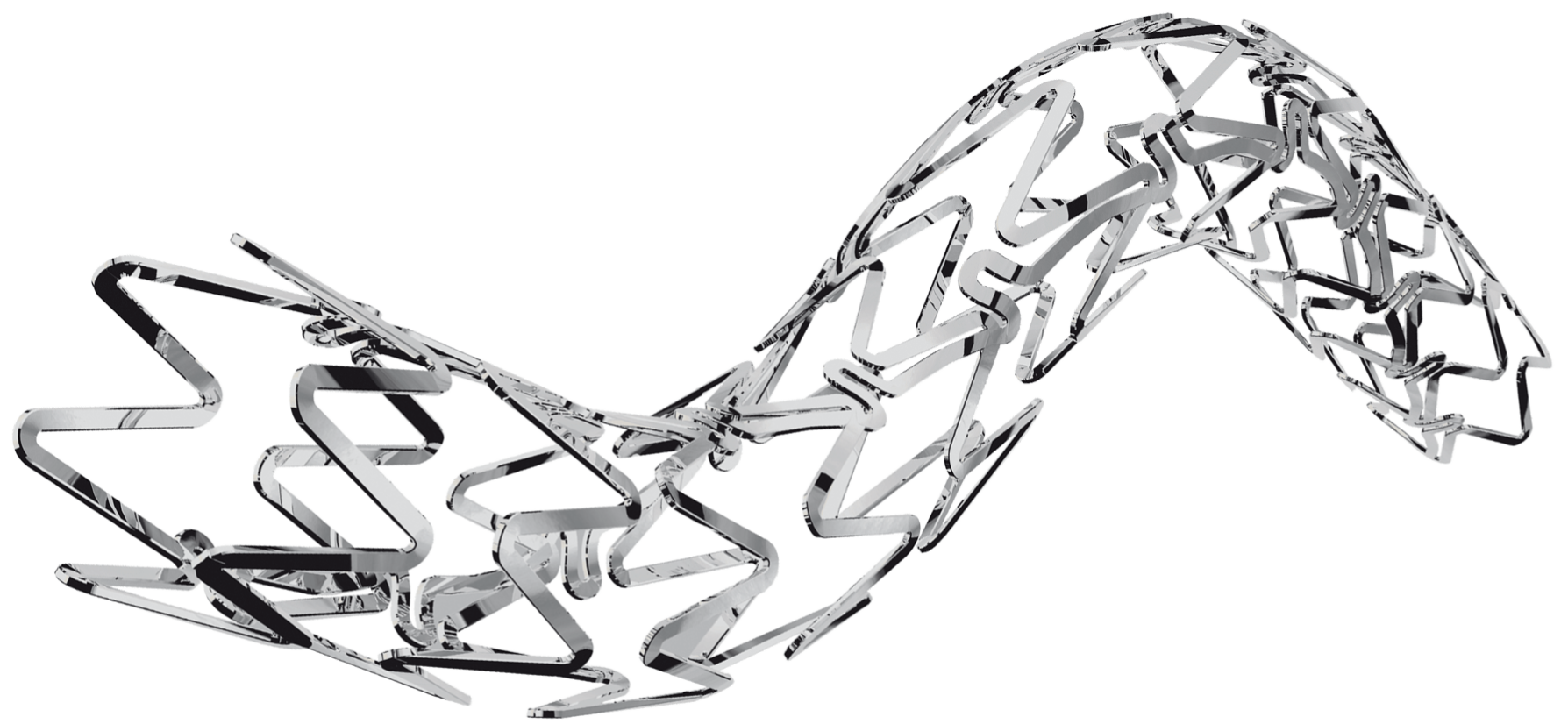

Architect is a cobalt-chromium L605 coronary balloon-expandable stent.
The stent is delivered pre-mounted on a delivery system designed to treat coronary artery lesions by implanting it into the affected area.

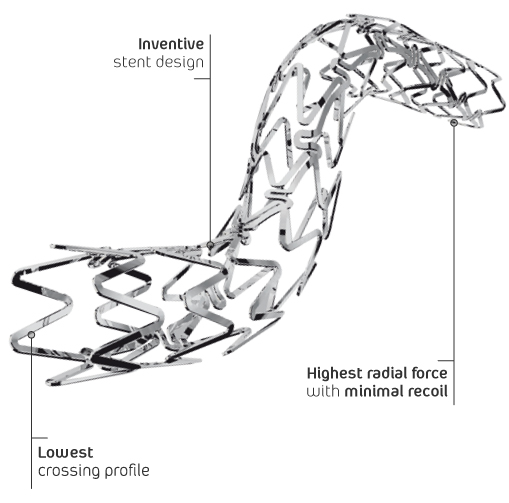

Advantages

Low crossing profile
High radial strength with low recoil

Brochure Architect
