Aorfix
Endovascular stent graft
Lombard | Aorfix / Endovascular Stent Graft
Lombard | Aorfix / Endovascular Stent Graft
Lombard | Aorfix / Endovascular Stent Graft
Lombard | Aorfix / Endovascular Stent Graft
Lombard | Aorfix / Endovascular Stent Graft

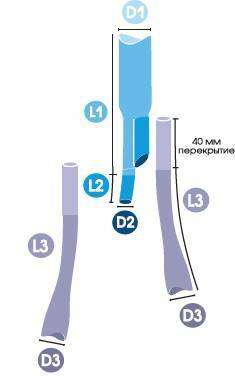

Technical Specifications
Proximal Diameter, mm
D1: 24, 27, 31
Body Length, mm
L1: 81, 96, 111, 126
Ipsilateral Leg Length, mm
L2: 63
Ipsilateral Distal Leg Diameter, mm
D2: 12
Contralateral Leg Length, mm
L3: 56, 73, 90, 106
Contralateral Distal Leg Diameter, mm
D3: 10, 12, 14, 16, 18, 20
Delivery System:
18 Fr ID — bifurcation component,
16 Fr ID — contralateral leg
Proximal Extender Diameter, mm
D5: 24, 27, 31
Proximal Extender Length, mm
L5: 38
D1: 24, 27, 31
Body Length, mm
L1: 81, 96, 111, 126
Ipsilateral Leg Length, mm
L2: 63
Ipsilateral Distal Leg Diameter, mm
D2: 12
Contralateral Leg Length, mm
L3: 56, 73, 90, 106
Contralateral Distal Leg Diameter, mm
D3: 10, 12, 14, 16, 18, 20
Delivery System:
18 Fr ID — bifurcation component,
16 Fr ID — contralateral leg
Proximal Extender Diameter, mm
D5: 24, 27, 31
Proximal Extender Length, mm
L5: 38
Advantages
Advantages
Approved for aortic neck angle up to 90°
Flexibility
Adaptability to anatomy
Durability
Approved for aortic neck angle up to 90°
Flexibility
- The unique Halo-shaped design is intended to maintain vessel lumen in complex anatomy.
- The spiral design of the Aorfix stent-graft provides unparalleled flexibility while maintaining lumen size even with extreme angulation.
Adaptability to anatomy
- Designed to adapt to changing anatomy over time and withstand blood flow pressure.
- The unique fish-mouth design ensures excellent vessel wall apposition when the aortic neck morphology changes.
Durability
- The self-expanding electropolished nitinol wire adapts to uneven vessel walls for improved sealing and apposition.
- Aorfix has been tested for 400 million pulses at a 90° angle.
- Pulsation of 5-7% at 100 mmHg, which is equivalent to 10 years.

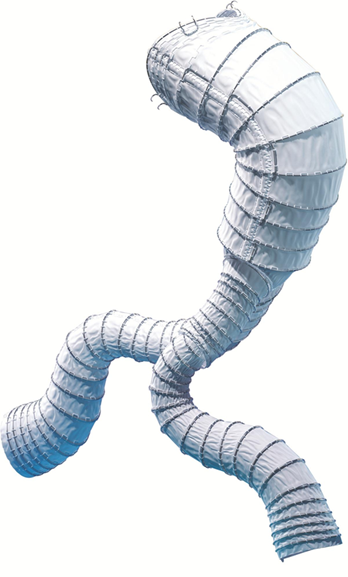

Aorfix Endovascular Stent-Graft
The Aorfix bifurcated stent-graft provides endovascular treatment for patients with abdominal aortic aneurysms, suitable for both simple and complex anatomy. Aorfix is composed of several components: the body (bifurcated part) and the contralateral leg, which can be used as an extension for the ipsilateral leg. Proximal and distal extenders are also available.
