Angioway™
Lepu Medical | Angioway™ / High-Pressure Line Extensions
Lepu Medical | Angioway™ / High-Pressure Line Extensions
Lepu Medical | Angioway™ / High-Pressure Line Extensions
Lepu Medical | Angioway™ / High-Pressure Line Extensions
Lepu Medical | Angioway™ / High-Pressure Line Extensions
The set consists of a Y-connector with a hemostatic valve, a device for rotating the guidewire, and a metal guidewire introducer that effectively minimizes blood loss and provides a smooth channel for the insertion of interventional tools. The lightweight two-position mechanism allows for single-handed operation.
- Various options available: rotating type, two-position, two-position with extension tube
- Body material: polycarbonate
- Maximum internal lumen: 0.118" (3.0 mm)
- Sterilization: ETO
Manifold
- Visually distinct handle makes flow control simple and precise
- Ports: from one to three
- Pressure: 250 psi or 500 psi
- Extension: optional
- Available in On/Off types
- Sterilization: EO (Ethylene Oxide)

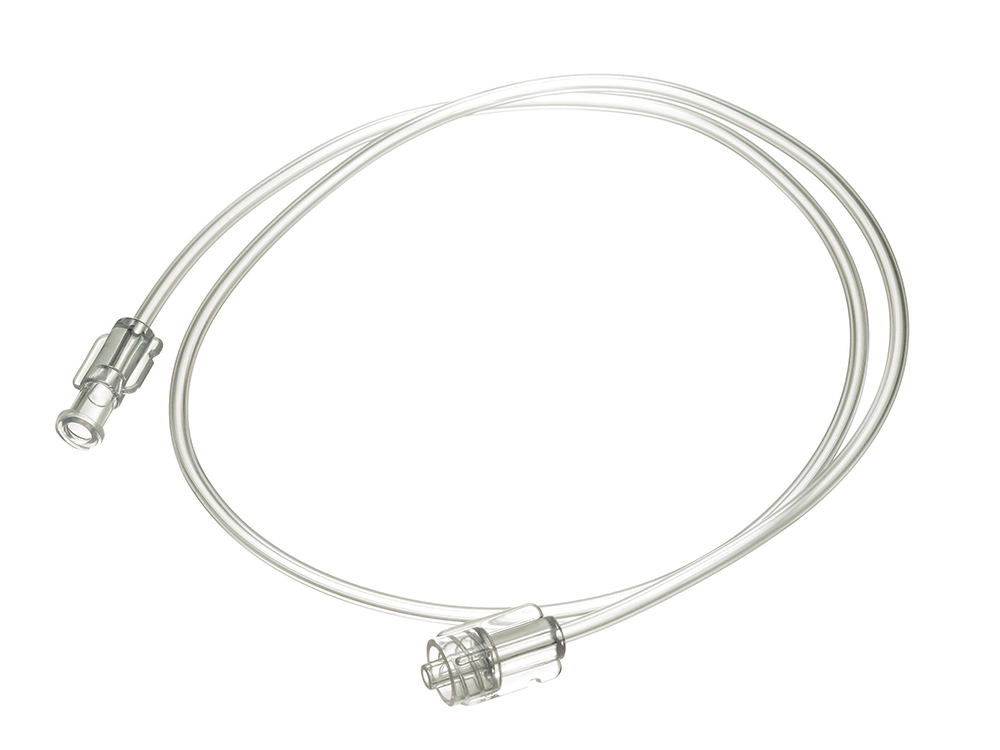

High-Pressure Line Extensions
- Transparent high-pressure material supports high flow passage
- Material: PVC/PTU
- Inner diameter: 0.056" (1.44 mm)
- Pressure resistance ranges from 500 to 1200 psi
- Available in custom lengths
- Sterilization: EO (Ethylene Oxide)
